akrnltaskblink3.ino File Reference

#include <krnl.h>

Include dependency graph for akrnltaskblink3.ino:

Go to the source code of this file.

Macros
#define	TICKSPEED   10
#define	STK   100

Functions
void	highprio ()
void	medprio ()
void	lowprio ()
void	setup ()
void	loop ()
void	k_sem_clip (unsigned char nr, int i)
void	k_breakout ()

Variables
struct k_t *	pt1
struct k_t *	pt2
struct k_t *	pt3
struct k_t *	sem1
struct k_t *	sem2
struct k_t *	sem3
char	st1 [100]
char	st2 [100]
char	st3 [100]
volatile unsigned char	led13 = 0

Macro Definition Documentation

STK

#define STK   100

Definition at line 35 of file akrnltaskblink3.ino.

TICKSPEED

#define TICKSPEED   10

Definition at line 33 of file akrnltaskblink3.ino.

Function Documentation

highprio()

void highprio

(

)

Definition at line 40 of file akrnltaskblink3.ino.

References k_t::clip, k_set_sem_timer(), k_wait(), sem1, and TICKSPEED.

Here is the call graph for this function:

k_breakout()

void k_breakout

(

void

)

Definition at line 110 of file akrnltaskblink3.ino.

References led13, and pRun.

k_sem_clip()

void k_sem_clip	(	unsigned char	nr,
		int	nrClip )

a function for overloading on usersite which is called when a semaphore is overflooding no occur - it's only reading out semaphore idendity Signal operations has not taken place ! 1: means first semahore allocated by user, 2 the next etc Interrupt is disabled when called and must not be enabled during.. so no print etc

Parameters

[in]	nr	id of semaphore 1,2,3,...
[in]	nrClip	number of times clip has occured (may be reset by call k_wait_lost)

Definition at line 103 of file akrnltaskblink3.ino.

References i, and led13.

loop()

void loop

(

void

)

Definition at line 96 of file akrnltaskblink3.ino.

lowprio()

void lowprio

(

)

Definition at line 62 of file akrnltaskblink3.ino.

References k_t::clip, k_set_sem_timer(), k_wait(), led13, sem3, and TICKSPEED.

Here is the call graph for this function:

medprio()

void medprio

(

)

Definition at line 52 of file akrnltaskblink3.ino.

References k_t::clip, k_set_sem_timer(), k_wait(), sem2, and TICKSPEED.

Here is the call graph for this function:

setup()

void setup

(

)

Definition at line 74 of file akrnltaskblink3.ino.

References highprio(), i, k_crt_sem(), k_crt_task(), k_init(), k_start(), lowprio(), medprio(), pt1, pt2, pt3, sem1, sem2, sem3, st1, st2, st3, and STK.

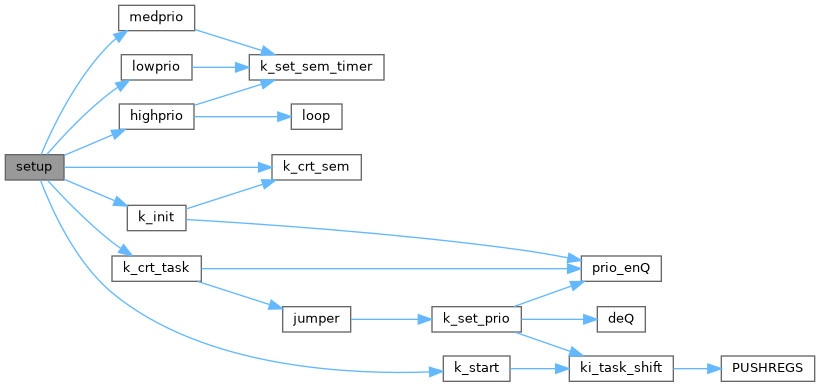

Here is the call graph for this function:

Variable Documentation

led13

volatile unsigned char led13 = 0

Definition at line 38 of file akrnltaskblink3.ino.

pt1

struct k_t* pt1

Definition at line 30 of file akrnltaskblink3.ino.

pt2

struct k_t * pt2

Definition at line 30 of file akrnltaskblink3.ino.

pt3

struct k_t * pt3

Definition at line 30 of file akrnltaskblink3.ino.

sem1

struct k_t * sem1

Definition at line 31 of file akrnltaskblink3.ino.

sem2

struct k_t * sem2

Definition at line 31 of file akrnltaskblink3.ino.

sem3

struct k_t * sem3

Definition at line 31 of file akrnltaskblink3.ino.

st1

char st1[100]

Definition at line 36 of file akrnltaskblink3.ino.

st2

char st2[100]

Definition at line 36 of file akrnltaskblink3.ino.

st3

char st3[100]

Definition at line 36 of file akrnltaskblink3.ino.
