#include "krnl.h"
#include <stdlib.h>
#include <avr/interrupt.h>

Include dependency graph for krnl.c:

Functions
void	enQ (struct k_t Q, struct k_t el)
struct k_t *	deQ (struct k_t *el)

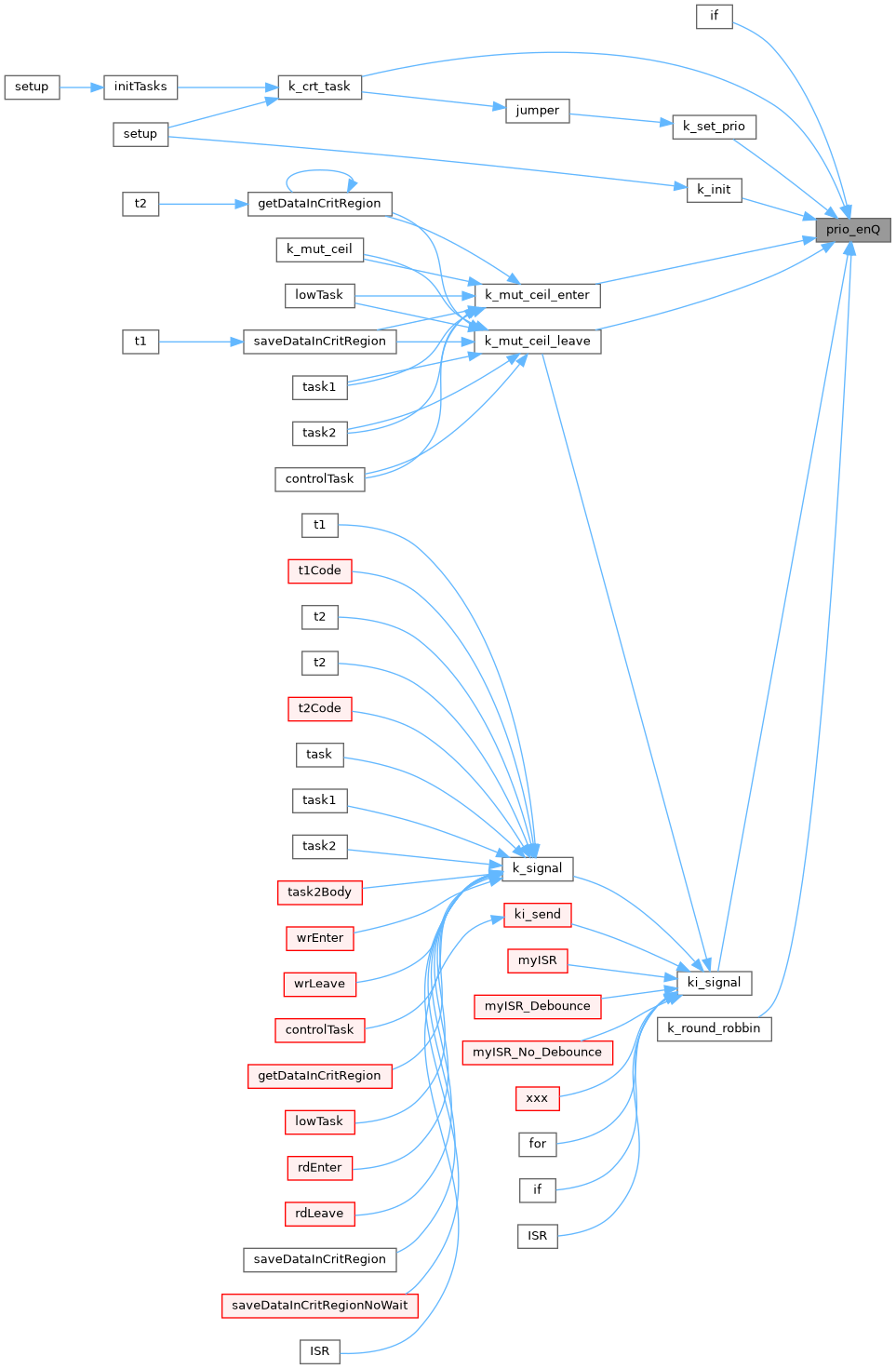

void	prio_enQ (struct k_t Q, struct k_t el)
void	delayMicroseconds (unsigned int t)
void	k_eat_msec (unsigned int eatTime)
	eat milliseconds - to mimik time consuming code
int	k_ticksize (void)

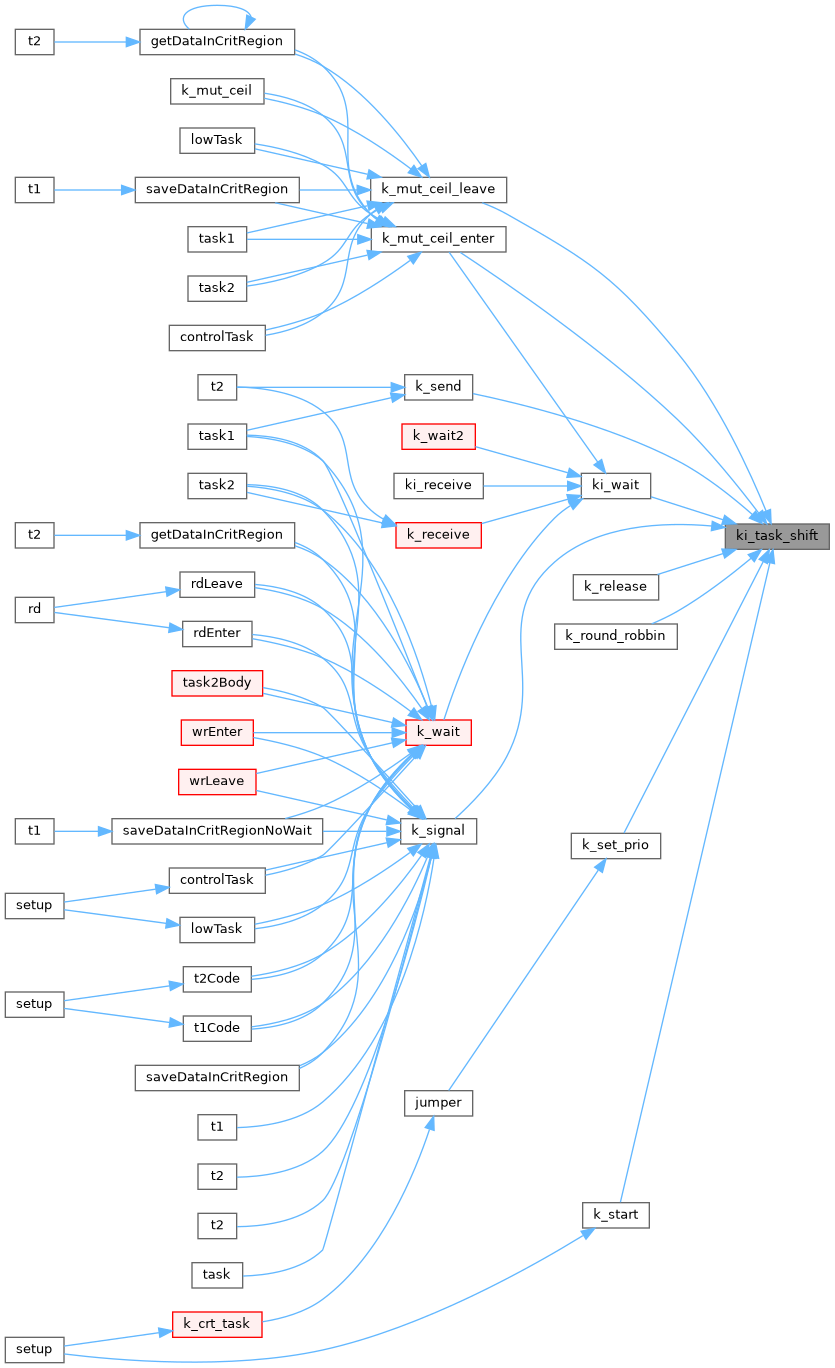

void	ki_task_shift (void)
	shift running to task in front in AQ
void	jumper ()
struct k_t *	k_crt_task (void(pTask)(void), char prio, char pStk, int stkSize)
	create a task - only to be called before k_start creates a task and put it in the active Q
int	freeRam (void)

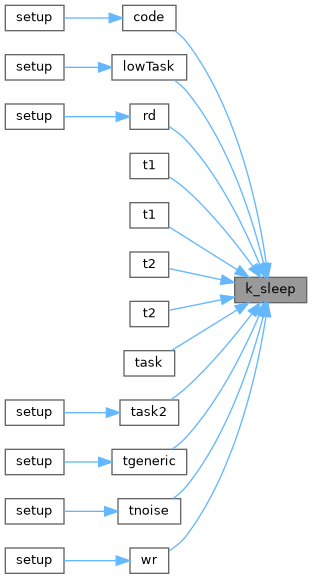

int	k_sleep (int time)
	let task sleep for a number of milliseconds
int	ki_my_unused_stak ()
int	ki_unused_stak (struct k_t *t)
int	k_unused_stak (struct k_t *t)
int	k_set_prio (char prio)
int	k_mut_ceil_set (struct k_t *sem, char prio)
	set ceiling priority on a mutex
struct k_t *	k_crt_sem (int init_val, int maxvalue)
	change task priority and reinserts it in task Q and do a task shift

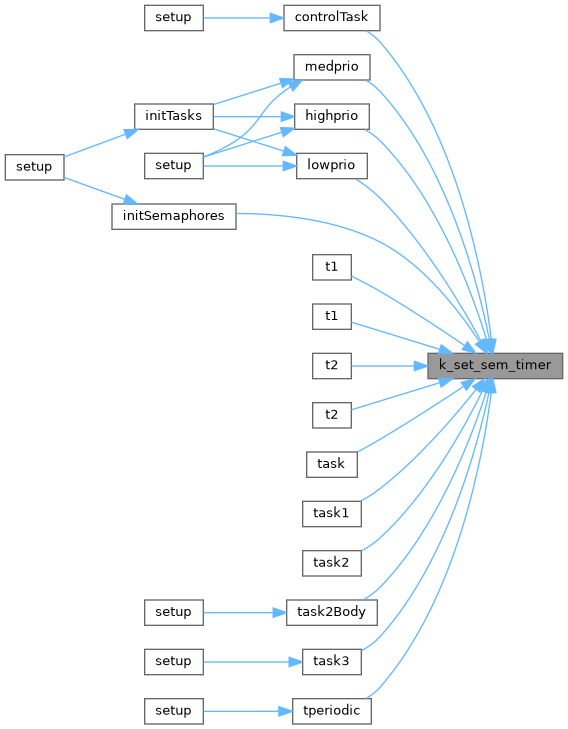

int	k_set_sem_timer (struct k_t *sem, int val)
	attach a periodic timer to a semaphore, to be used for realtime

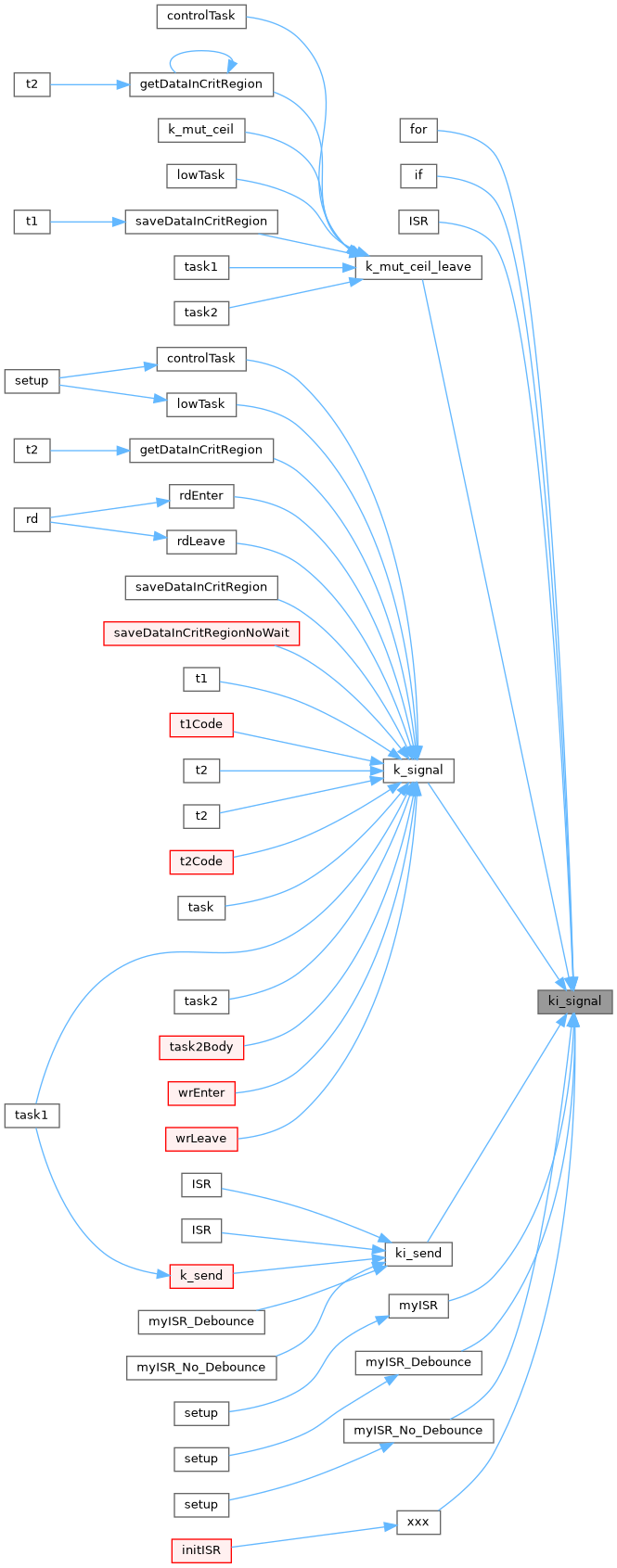

int	ki_signal (struct k_t *sem)
	signal a semaphore from AN ISR - no task shift , do not enable intr,...

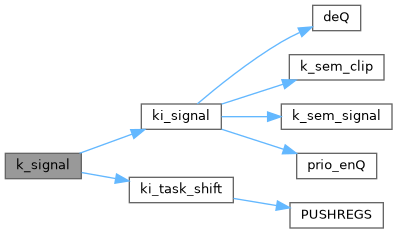

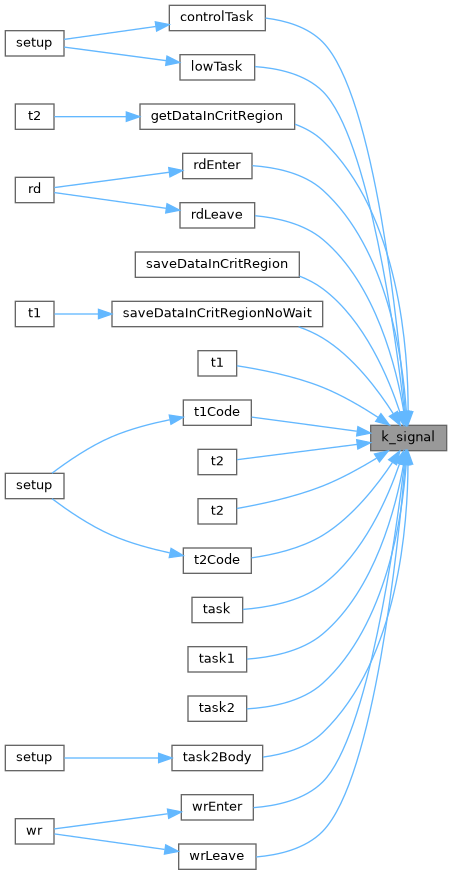

int	k_signal (struct k_t *sem)
	Signal a semaphore w eventually task shift.

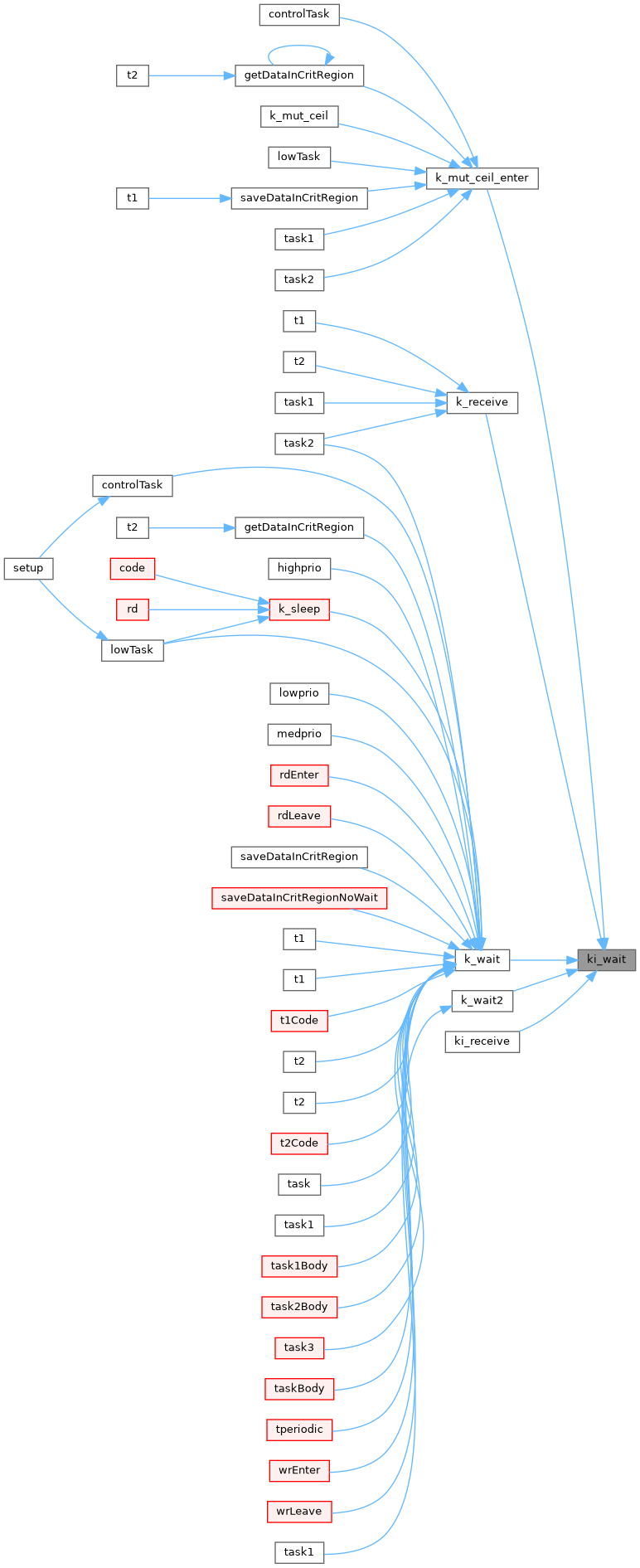

int	ki_wait (struct k_t *sem, int timeout)
	a wait call with no disable - fct might no be usefull

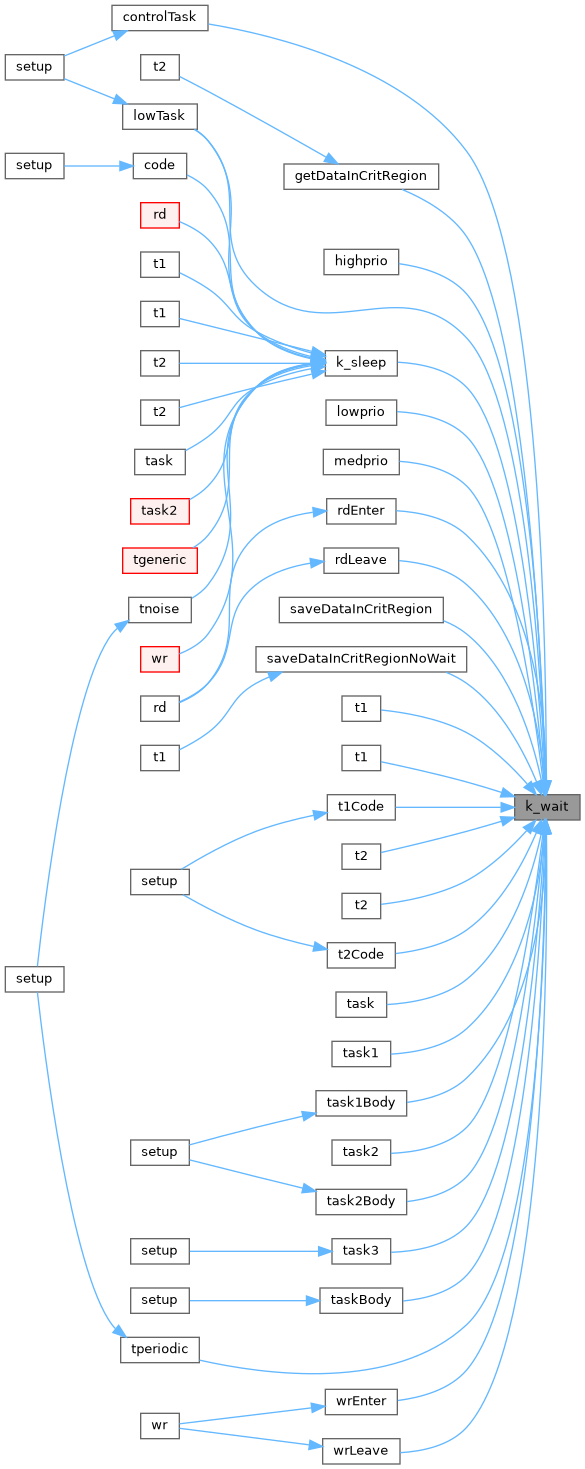

int	k_wait (struct k_t *sem, int timeout)
	stand wait on semaphore call with timeout facility
int	k_wait2 (struct k_t sem, int timeout, int nrClip)
	wait with add info .´- nr of in max limit from signals since last time(saturation)
struct k_t *	k_crt_mut (char ceiling_prio, int init_val, int maxvalue)
	crt a std semaphore to be used as mutex

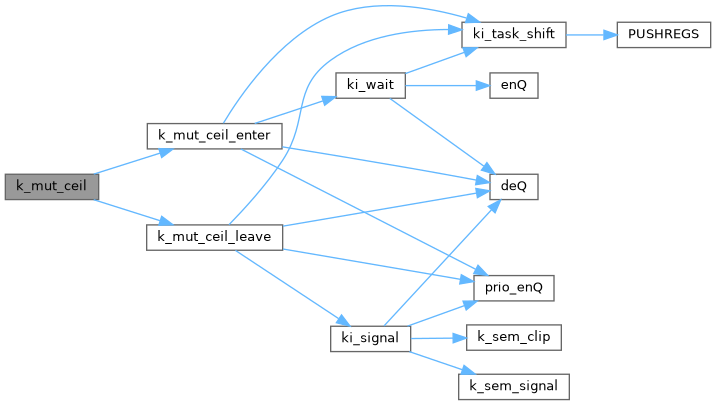

int	k_mut_ceil (struct k_t sem, int timeout, void(fct)(void))
	mutex entet, call fct, leave ceil in one call

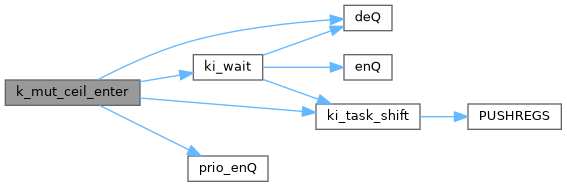

int	k_mut_ceil_enter (struct k_t *sem, int timeout)
	set ceiling priority on a mutex

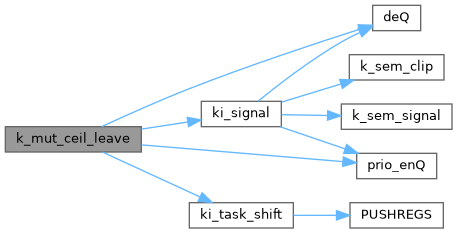

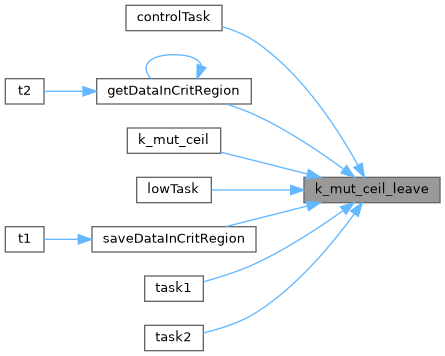

int	k_mut_ceil_leave (struct k_t *sem)
	leave a "ceiled mutex" enter with k_mut_ceil_enter
int	k_sem_signals_lost (struct k_t *sem)
	return signals lost on a sem(saturation) (and reset the saturation counter) Returns how many signals has been lost on semaphore due to saturation
int	ki_semval (struct k_t *sem)
	return sem counter value - Its a ki_ fct so intr is not enabled by leave
int	k_semval (struct k_t *sem)
	as ki_semval but to enable intr after leave
int	k_clear_sem (struct k_t *sem)
	reset sem counter to 0 is no tasks is waiting - usefull ?
int	ki_msg_count (struct k_msg_t *m)
	returns no of pending msg on msgf sem - a ki_ fct so no enable of interrupt
int	k_msg_count (struct k_msg_t *m)
	return no of pending messages
struct k_msg_t *	k_crt_send_Q (int nr_el, int el_size, void *pBuf)
int	ki_clear_msg_Q (struct k_msg_t *pB)
int	k_clear_msg_Q (struct k_msg_t *pB)

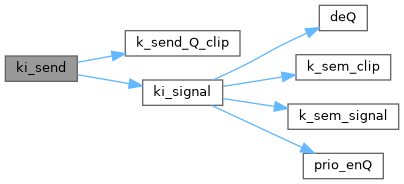

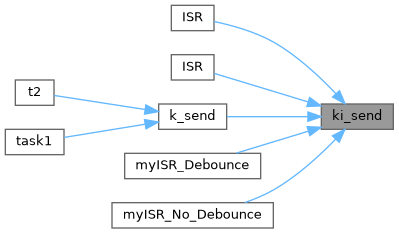

char	ki_send (struct k_msg_t pB, void el)

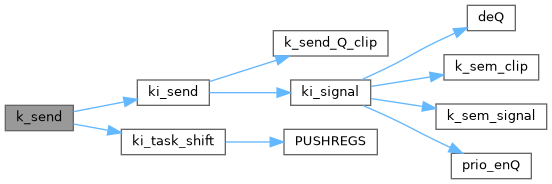

char	k_send (struct k_msg_t pB, void el)
char	ki_receive (struct k_msg_t pB, void el, int *lost_msg)
char	k_receive (struct k_msg_t pB, void el, int timeout, int *lost_msg)
void	k_round_robbin (void)
void	k_release (void)
int	k_init (int nrTask, int nrSem, int nrMsg)
int	k_start ()
int	k_stop ()
void	k_set_coop_multitask (unsigned char onn)

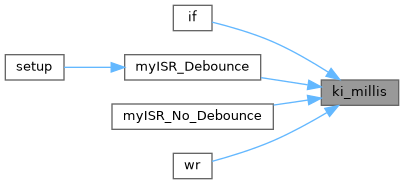

unsigned long	ki_millis (void)
	returns no msec since start - no DI/EI lock Returns nr of milliseconds since krnl was started by k_start
unsigned long	k_millis (void)
	return no of millisec sincs start NB no leap seconds - its clean
int	k_tmrInfo (void)
	if (!k_running)
	for (tmr_indx=0;tmr_indx< nr_sem;tmr_indx++)
__asm__	volatile ("reti")
void	k_breakout (void)
void	k_sem_clip (unsigned char nr, int nrClip)
void	k_sem_signal (unsigned char nr, int semVal)
	breakout for k_signal
void	k_sem_wait (unsigned char nr, int semVal)
	breakout for k_wait

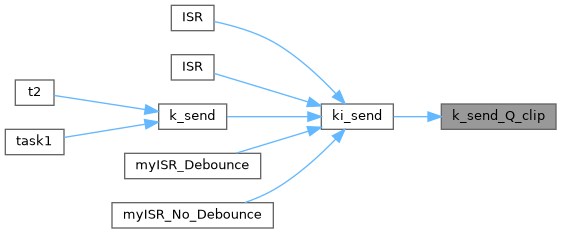

void	k_send_Q_clip (unsigned char nr, int nrClip)
	breakout for k_send
void *	k_malloc (int k)
	overruled malloc call malloc protected by DI and EI if dft as weak so you can supply with your own
void	k_free (void *m)
	a krnl free which do nothing. call free empty - no function if dft as weak so you can supply with your own
void	k_wdt_enable (int i)
	enable HW watchdog Call wdt_enable (AVR lib) DI(); wdt_enable(WDT_PERIOD); EI(); WDT_PERIOD is in KRNL i sec
void	k_wdt_disable (void)
	disable HW watchdog disable wdt Disable the watchdog timer

Variables
struct k_t *	task_pool
struct k_t *	sem_pool
struct k_t	AQ
struct k_t *	pmain_el
struct k_t *	pAQ
struct k_t *	pRun
struct k_t *	pSleepSem
struct k_msg_t *	send_pool
int	k_task
int	k_sem
int	k_msg
char	nr_task = 0
char	nr_sem = 0
char	nr_send = 0
volatile char	k_running = 0
volatile char	k_err_cnt = 0
volatile unsigned char	tcntValue
unsigned long	k_millis_counter = 0
unsigned int	k_tick_size
unsigned char	k_coopFlag = 0
int	tmr_indx
struct k_t *	pE = sem_pool
	ERROR1
exitt	__pad0__

Function Documentation

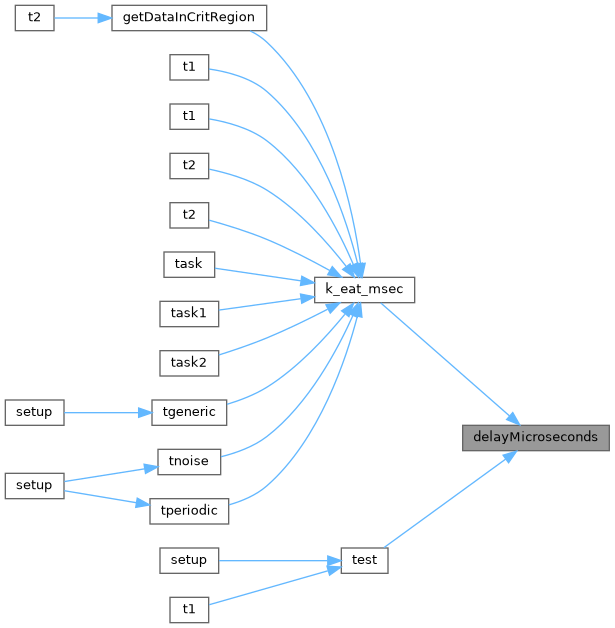

◆ delayMicroseconds()

void delayMicroseconds ( unsigned int t )

Referenced by k_eat_msec(), and test().

Here is the caller graph for this function:

◆ deQ()

struct k_t * deQ ( struct k_t * el )

Definition at line 208 of file krnl.c.

References k_t::next, and k_t::pred.

Referenced by if(), k_mut_ceil_enter(), k_mut_ceil_leave(), k_round_robbin(), k_set_prio(), ki_signal(), and ki_wait().

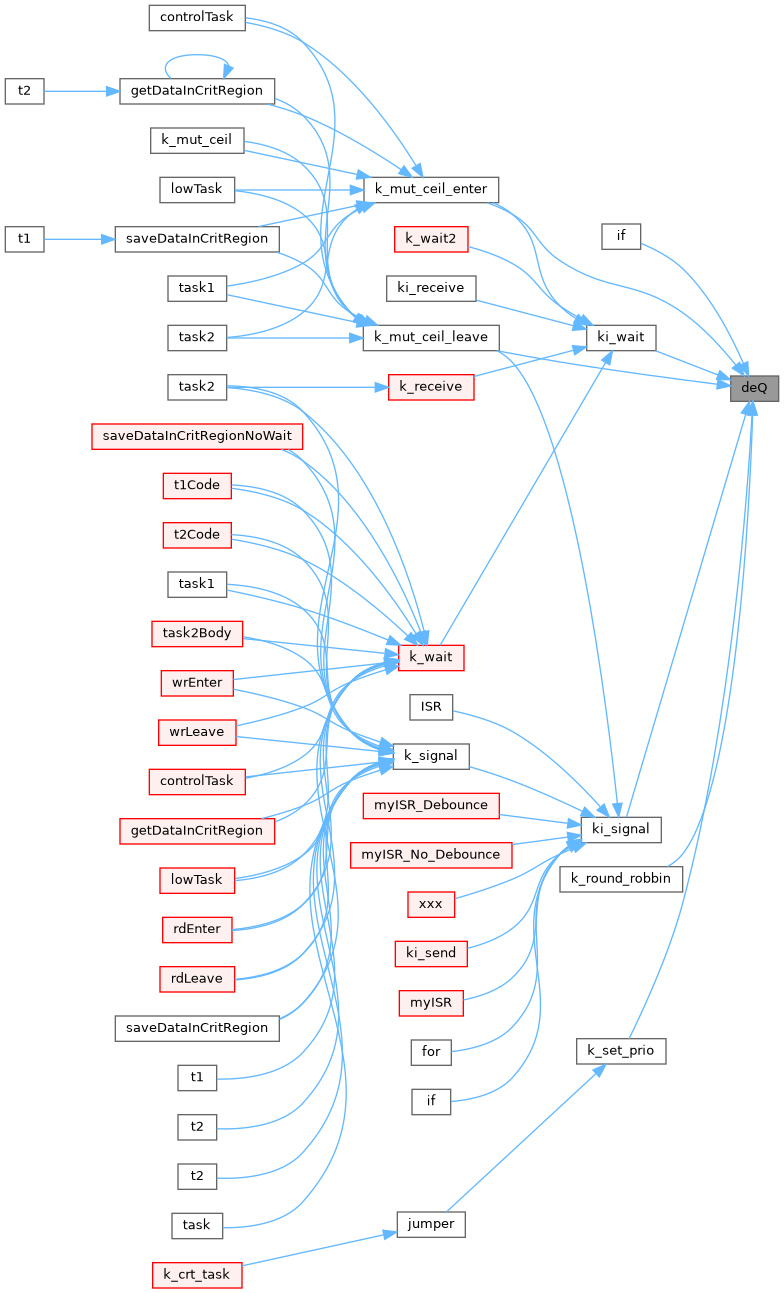

Here is the caller graph for this function:

◆ enQ()

void enQ	(	struct k_t *	Q,
		struct k_t *	el )

Definition at line 199 of file krnl.c.

References k_t::next, and k_t::pred.

Referenced by ki_wait().

Here is the caller graph for this function:

◆ for()

for ( )

Definition at line 1295 of file krnl.c.

References ki_signal(), nr_sem, pE, and tmr_indx.

Here is the call graph for this function:

◆ freeRam()

int freeRam ( void )

returns amount of free memory in your system (free size of heap) se docu in krnl.c

Definition at line 420 of file krnl.c.

References x.

Referenced by setup().

Here is the caller graph for this function:

◆ if()

if ( ! k_running )

Definition at line 1274 of file krnl.c.

References deQ(), K_CHG_STAK, k_coopFlag, k_running, pAQ, prio_enQ(), and pRun.

Here is the call graph for this function:

◆ jumper()

void jumper ( )

Definition at line 310 of file krnl.c.

References k_set_prio(), pRun, and ZOMBI_PRIO.

Referenced by k_crt_task().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_breakout()

void k_breakout ( void )

Definition at line 1341 of file krnl.c.

◆ k_clear_msg_Q()

int k_clear_msg_Q ( struct k_msg_t * pB )

Empty sendQ See ki_clear_msg-Q for description

Definition at line 900 of file krnl.c.

References DI, EI, ki_clear_msg_Q(), and k_msg_t::r.

Here is the call graph for this function:

◆ k_clear_sem()

int k_clear_sem ( struct k_t * sem )

reset sem counter to 0 is no tasks is waiting - usefull ?

Clear semaphore if possible. Will set semaphore vallue 0 if possible (if no tasks is waiting)

Parameters

[in] sem pointer ref to semaphore

Returns: semValue - if negative it indicates task are waiting and no clear

Definition at line 814 of file krnl.c.

References DI, EI, and sem.

◆ k_crt_mut()

struct k_t * k_crt_mut	(	char	ceiling_prio,
		int	init_val,
		int	maxvalue )

crt a std semaphore to be used as mutex

creates a standard mutex. It can be initialized to values in range [0..maxvalue]

Parameters

[in]	ceiling_prio	priority - task ceiling prio
[in]	init_val	startvalue of semaphore 0,1,2,... maxvalue
[in]	maxvalue	which is maxvalue semaphore can reach

Returns: handle to semaphore or NULL pointer

Remarks: only to be called before start of KRNL; you can use a normale semaphore - its the same

Definition at line 703 of file krnl.c.

References k_t::ceiling_prio, k_crt_sem(), k_err_cnt, and k_running.

Referenced by setup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_crt_sem()

struct k_t * k_crt_sem	(	int	init_val,
		int	maxvalue )

change task priority and reinserts it in task Q and do a task shift

creates a standard Dijkstra semaphore. It can be initialized to values in range [0..maxvalue]

Parameters

[in]	init_val	startvalue of semaphore 0,1,2,... maxvalue
[in]	maxvalue	which is maxvalue semaphore can reach

Returns: handle to semaphore or NULL pointer

Remarks: only to be called before start of KRNL

Definition at line 544 of file krnl.c.

References k_err_cnt, k_running, k_sem, MAX_SEM_VAL, nr_sem, QHD_PRIO, sem, and sem_pool.

Referenced by initSemaphores(), k_crt_mut(), k_crt_send_Q(), k_init(), rdWrLockInit(), and setup().

Here is the caller graph for this function:

◆ k_crt_send_Q()

struct k_msg_t * k_crt_send_Q	(	int	nr_el,
		int	el_size,
		void *	pBuf )

Definition at line 841 of file krnl.c.

References k_msg_t::el_size, k_crt_sem(), k_err_cnt, k_msg, k_running, k_sem, k_msg_t::nr_el, nr_sem, nr_send, k_msg_t::pBuf, pMsg, and send_pool.

Referenced by setup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_crt_task()

struct k_t * k_crt_task	(	void(*	pTask )(void),
		char	prio,
		char *	pS,
		int	stkSize )

create a task - only to be called before k_start creates a task and put it in the active Q

Parameters

[in]	pTask	pointer to function for code ( void task(void) ...)
[in]	prio	- task prio max: 1 lowest < DUMMY_PRIO
[in]	pS	- ptr to bye to be used as stack
[in]	stkSize	size of data area(in bytes) to be used for stak

Returns: : pointer to task handle or NULL if no success

Remarks: only to be called before start of KRNL but after k_init

Definition at line 328 of file krnl.c.

References k_t::cnt1, k_t::cnt2, k_t::cnt3, DMY_PRIO, hi8, i, jumper(), k_err_cnt, k_running, k_task, lo8, k_t::maxv, k_t::nr, nr_task, pAQ, k_t::prio, prio_enQ(), k_t::pt, pTask, s, k_t::sp_hi, k_t::sp_lo, STAK_HASH, and task_pool.

Referenced by initTasks(), and setup().

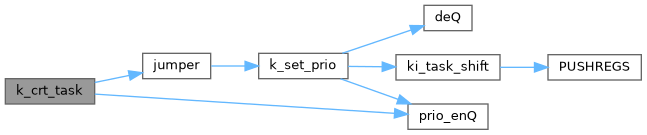

Here is the call graph for this function:

Here is the caller graph for this function:

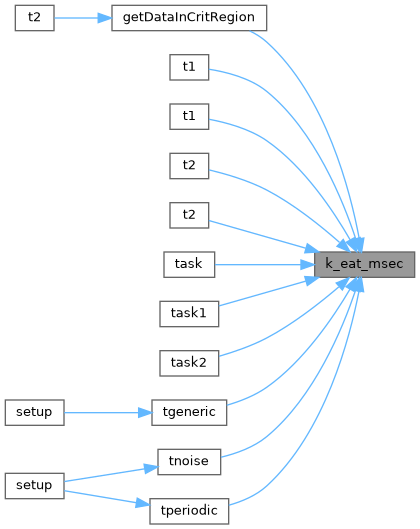

◆ k_eat_msec()

void k_eat_msec ( unsigned int eatTime )

eat milliseconds - to mimik time consuming code

Eat time in milliseconds starting from now but not from next tick (1 msec)

Parameters

[in] eatTime number of ticks to eat

Definition at line 246 of file krnl.c.

References delayMicroseconds().

Referenced by getDataInCritRegion(), t1(), t1(), t2(), t2(), task(), task1(), task2(), tgeneric(), tnoise(), and tperiodic().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_free()

void k_free ( void * m )

a krnl free which do nothing. call free empty - no function if dft as weak so you can supply with your own

Remarks: do no free mem bq we do not want fragmented memory

Definition at line 1363 of file krnl.c.

References m.

◆ k_init()

int k_init	(	int	nrTask,
		int	nrSem,
		int	nrMsg )

Initialise KRNL. First function to be called. You have to give max number of tasks, semaphores and message queues you will use

Parameters

[in]	nrTask	...
[in]	nrSem	...
[in]	nrMsg	...

Definition at line 1108 of file krnl.c.

References AQ, DMY_PRIO, k_crt_sem(), k_err_cnt, k_msg, k_running, k_sem, k_task, nr_send, nr_task, pAQ, pmain_el, prio_enQ(), pSleepSem, QHD_PRIO, sem_pool, send_pool, and task_pool.

Referenced by setup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_malloc()

void * k_malloc ( int k )

overruled malloc call malloc protected by DI and EI if dft as weak so you can supply with your own

Definition at line 1355 of file krnl.c.

References DI, EI, k, and m.

◆ k_millis()

unsigned long k_millis ( void )

return no of millisec sincs start NB no leap seconds - its clean

Returns nr of milliseconds since krnl was started by k_start

Returns: : unsigned long is returned

Remarks: only to be called after start of KRNL; Interrupt is disabled when reading krnl time and is enabled afterwards

Definition at line 1247 of file krnl.c.

References DI, EI, k_millis_counter, and l.

Referenced by setup(), t2(), task1(), and wr().

Here is the caller graph for this function:

◆ k_msg_count()

int k_msg_count ( struct k_msg_t * m )

return no of pending messages

Parameters

[in] m msg Q handle

Returns: positive nr of pending or -1

Remarks: only to be called after start of KRNL

Definition at line 833 of file krnl.c.

References EI, ki_msg_count(), and m.

Here is the call graph for this function:

◆ k_mut_ceil()

int k_mut_ceil	(	struct k_t *	sem,
		int	timeout,
		void(*	fct )(void) )

mutex entet, call fct, leave ceil in one call

Mutex enter and leave w imm priority ceiling in one operation

Parameters

sem	mutex with ceiling
timeout	0 == forever
fct	void fct(void) the function w critical code

Returns: 0: ok ,waited, 1 straight through; -1 timeout, -3 CEILINGFAILNOTCEIL not a semaphore w ceiling, -4 CEILINGFAIL my priority is above ceil max prio

Definition at line 726 of file krnl.c.

References k_mut_ceil_enter(), k_mut_ceil_leave(), and sem.

Here is the call graph for this function:

◆ k_mut_ceil_enter()

int k_mut_ceil_enter	(	struct k_t *	sem,
		int	timeout )

set ceiling priority on a mutex

Enter mutex (eq to k_wait...) use k_mut_enter / k_mut_leave instead of wait and signal

Parameters

[in]	sem	aka mutex
[in]	timeout	timeout value

Returns: 0: if you have been waiting, 1 if you just went through, -1 for timeout, -3 if your priority was higher than ceiling priority

Definition at line 739 of file krnl.c.

References CEILINGFAILNOTCEIL, CEILINGFAILPRIO, deQ(), DI, EI, ki_task_shift(), ki_wait(), pAQ, prio_enQ(), pRun, and sem.

Referenced by controlTask(), getDataInCritRegion(), k_mut_ceil(), lowTask(), saveDataInCritRegion(), task1(), and task2().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_mut_ceil_leave()

int k_mut_ceil_leave ( struct k_t * sem )

leave a "ceiled mutex" enter with k_mut_ceil_enter

Leave mutex (eq to k_signal...) use k_mut_enter/ k_mut_leave instead of wait and signal

Parameters

[in] sem used as mutex

Returns: 0: ok otherwise bad bad

Definition at line 771 of file krnl.c.

References deQ(), DI, EI, ki_signal(), ki_task_shift(), pAQ, prio_enQ(), pRun, and sem.

Referenced by controlTask(), getDataInCritRegion(), k_mut_ceil(), lowTask(), saveDataInCritRegion(), task1(), and task2().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_mut_ceil_set()

int k_mut_ceil_set	(	struct k_t *	sem,
		char	prio )

set ceiling priority on a mutex

Parameters

[in]	sem	semaphore
[in]	prio

Returns: 0 if ok otherwise neg

Definition at line 529 of file krnl.c.

References DMY_PRIO, k_running, k_t::prio, and sem.

Referenced by setup().

Here is the caller graph for this function:

◆ k_receive()

char k_receive	(	struct k_msg_t *	pB,
		void *	el,
		int	timeout,
		int *	lost_msg )

Receive data (one element of el_size)in the ringbuffer if there are data DONE BY COPY !

Parameters

[in]	pB	Ref to message buffer
[out]	el	Reference to where data shall be copied to at your site
[in]	timeout	Max time you want to wait on data, -1: never, 0: forever, positive: nr of KRNL timer quants
[out]	lost_msg	nr of lost messages since last receive. will clip at If lost_msg ptr is NULL then overrun counter is not reset to 0.

Returns: 1: ok no suspension, 0: operation did succed, -1: no data in ringbuffer

Remarks: only to be called after start of KRNL

Definition at line 991 of file krnl.c.

References k_msg_t::cnt, DI, EI, k_msg_t::el_size, i, ki_wait(), k_msg_t::lost_msg, k_msg_t::nr_el, k_msg_t::pBuf, k_msg_t::r, and k_msg_t::sem.

Referenced by t1(), t2(), task1(), and task2().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_release()

void k_release ( void )

release switch running to task in front of Active Q calls ki_task_shift (); enveloped by a DI and EI no round robbin

Definition at line 1084 of file krnl.c.

References DI, EI, and ki_task_shift().

Here is the call graph for this function:

◆ k_round_robbin()

void k_round_robbin ( void )

round robbin reinsert running task in activeQ. so running will be inserted after other tasks with same or higher priority

Definition at line 1073 of file krnl.c.

References deQ(), DI, EI, ki_task_shift(), pAQ, prio_enQ(), and pRun.

Here is the call graph for this function:

◆ k_sem_clip()

void k_sem_clip	(	unsigned char	nr,
		int	nrClip )

a function for overloading on usersite which is called when a semaphore is overflooding no occur - it's only reading out semaphore idendity Signal operations has not taken place ! 1: means first semahore allocated by user, 2 the next etc Interrupt is disabled when called and must not be enabled during.. so no print etc

Parameters

[in]	nr	id of semaphore 1,2,3,...
[in]	nrClip	number of times clip has occured (may be reset by call k_wait_lost)

Definition at line 1343 of file krnl.c.

Referenced by ki_signal().

Here is the caller graph for this function:

◆ k_sem_signal()

void k_sem_signal	(	unsigned char	nr,
		int	val )

breakout for k_signal

called in a signal call val is sem val AFTER signal has taken place

Parameters

[out]	nr	number of semaphore. Semaphores are allocated by user buth] val
[in]	val	sem val also in message queues. So it may be diff to find the semaphore...

Definition at line 1345 of file krnl.c.

Referenced by ki_signal().

Here is the caller graph for this function:

◆ k_sem_signals_lost()

int k_sem_signals_lost ( struct k_t * sem )

return signals lost on a sem(saturation) (and reset the saturation counter) Returns how many signals has been lost on semaphore due to saturation

Parameters

[in] sem semaphore handle

Returns: nr of signals lost

Remarks: only to be called after start of KRNL

Definition at line 789 of file krnl.c.

References DI, EI, sem, and x.

◆ k_sem_wait()

void k_sem_wait	(	unsigned char	nr,
		int	val )

breakout for k_wait

called when wait called. val is sem value after countdown has taken place NB is the wait call willl not wait and there is no token at the semaphore val will be -1111

Definition at line 1347 of file krnl.c.

◆ k_semval()

int k_semval ( struct k_t * sem )

as ki_semval but to enable intr after leave

returns value of semaphore

Parameters

[in] sem semaphore handle

Returns: 1: ok not suspended, 0: ok you have been suspended; -1 no wait maybe bq no timeout was allowed

Remarks: only to be called after start of KRNL

Definition at line 807 of file krnl.c.

References EI, ki_semval(), and sem.

Here is the call graph for this function:

◆ k_send()

char k_send	(	struct k_msg_t *	pB,
		void *	el )

Put data (one element of el_size)in the ringbuffer if there are room for it. DONE BY COPY !

Parameters

[in]	pB	Ref to message buffer
[in]	el	Reference to data to be put in buffer. Size if already given in k_crt_send

Returns: 0: operation did succed, -1: no room in ringbuffer

Remarks: only to be called after start of KRNL; k_send does not block if no space in buffer. Instead -1 is returned

Definition at line 944 of file krnl.c.

References DI, EI, ki_send(), and ki_task_shift().

Referenced by t2(), and task1().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_send_Q_clip()

void k_send_Q_clip	(	unsigned char	nr,
		int	nrClip )

breakout for k_send

a function for overloading on usersite which is called when a msgQ is overflooding no reset occur - it's only readind out smsgQ idendity 1: means first msgQ allocated by user etc Interrupt is disabled when called and must not be enabled during.. so no print etc

Parameters

[out]	nr	: id of send Q 0,1,2,...
[out]	nrClip	number of times clip has occured (may be reset by call k_receive and lost parm not eq NULL)

Definition at line 1349 of file krnl.c.

Referenced by ki_send().

Here is the caller graph for this function:

◆ k_set_coop_multitask()

void k_set_coop_multitask ( unsigned char onn )

Definition at line 1236 of file krnl.c.

References k_coopFlag.

◆ k_set_prio()

int k_set_prio ( char prio )

change priority of calling task)

Parameters

[in] prio new prio, Priority 1: highest (QHEAD_PRIO-1): lowest

Returns: : 0: ok, -1: KRNL not running, -2: illegal value

Remarks: only to be called after start of KRNL

Definition at line 503 of file krnl.c.

References deQ(), DI, DMY_PRIO, EI, i, k_running, ki_task_shift(), pAQ, k_t::prio, prio_enQ(), and pRun.

Referenced by jumper().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_set_sem_timer()

int k_set_sem_timer	(	struct k_t *	sem,
		int	val )

attach a periodic timer to a semaphore, to be used for realtime

attach a timer to the semaphore so KRNL will signal the semaphore with regular intervals. Can be used for cyclic real time run of a task.

Parameters

[in]	sem	semaphore handle
[in]	val	interval in quant of KRNL ticks (0: disable cyclic timer, 1,2,3... cyclic quant)

Returns: -1: negative val, 0. ok

Remarks: only to be called after start of KRNL

Definition at line 586 of file krnl.c.

References DI, EI, and sem.

Referenced by controlTask(), highprio(), initSemaphores(), lowprio(), medprio(), t1(), t1(), t2(), t2(), task(), task1(), task2(), task2Body(), task3(), and tperiodic().

Here is the caller graph for this function:

◆ k_signal()

int k_signal ( struct k_t * sem )

Signal a semaphore w eventually task shift.

Signal and has higher priority than you. Task shift will task place if a task is started by the signal has higher prio than you

Parameters

[in] sem semaphore handle

Returns: 0: ok , -1: max value of semaphore reached

Remarks: The ki_ indicates that interrups is NOT enabled when leaving ki_signal; only to be called after start of KRNL

Definition at line 636 of file krnl.c.

References DI, EI, ki_signal(), ki_task_shift(), and sem.

Referenced by controlTask(), getDataInCritRegion(), lowTask(), rdEnter(), rdLeave(), saveDataInCritRegion(), saveDataInCritRegionNoWait(), t1(), t1Code(), t2(), t2(), t2Code(), task(), task1(), task2(), task2Body(), wrEnter(), and wrLeave().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_sleep()

int k_sleep ( int time )

let task sleep for a number of milliseconds

Set task asleep for a number of msec.

Parameters

[in] time millisec to sleep

Returns: : 0 is ok - has sleept, error - did you sleep or did someone signal your sleepSem is less than 0

Remarks: only to be called after start of KRNL

Definition at line 445 of file krnl.c.

References k_wait(), and pSleepSem.

Referenced by code(), lowTask(), rd(), t1(), t1(), t2(), t2(), task(), task2(), tgeneric(), tnoise(), and wr().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_start()

int k_start ( void )

Starts krnl is possible If there has been ciritcal errors between k_init and k_start (like no more task descriptors) k_start will return a negative number indicatin how many errors

If k_start starts you will not return from k_start

Definition at line 1149 of file krnl.c.

References DI, EI, k_err_cnt, k_running, k_tick_size, ki_task_shift(), pmain_el, and pRun.

Referenced by setup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_stop()

int k_stop ( )

stop KRNL parm can be 1 or 10 can only run 1 og 10 msec tick speed If krnl is not yet running you will return with a -1 as return value If krnl is running interrupt will be disabled and k_stop ends in an infinite loop

Definition at line 1212 of file krnl.c.

References DI, EI, and k_running.

Referenced by t1().

Here is the caller graph for this function:

◆ k_ticksize()

int k_ticksize ( void )

Definition at line 283 of file krnl.c.

References k_tick_size.

◆ k_tmrInfo()

int k_tmrInfo ( void )

returns which timer is used

Returns: 0,1,2,3,4,5 ...

Definition at line 1256 of file krnl.c.

◆ k_unused_stak()

int k_unused_stak ( struct k_t * t )

Returns amount of unused stak

Parameters

[in] t Ptr to taskdescriptor. If NULL it is yourself

Returns: : amount of unused stak(in bytes)

Remarks: : a watermark philosophy is used

Definition at line 493 of file krnl.c.

References DI, EI, i, and ki_unused_stak().

Referenced by t1().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_wait()

int k_wait	(	struct k_t *	sem,
		int	timeout )

stand wait on semaphore call with timeout facility

Wait on a semaphore. Task shift will task place if you are blocked.

Parameters

[in]	sem	semaphore handle
[in]	timeout	"<0" you will be started after timeout ticks, "=0" wait forever "-1" you will not wait

Returns: 1: ok there was a signal hanging - so no suspension; 0: ok- you have been suspended; -1: timeout has occured, -2 no wait bq timeout was -1 and semaphore was negative

Remarks: only to be called after start of KRNL

Definition at line 683 of file krnl.c.

References DI, EI, ki_wait(), and sem.

Referenced by controlTask(), getDataInCritRegion(), highprio(), k_sleep(), lowprio(), lowTask(), medprio(), rdEnter(), rdLeave(), saveDataInCritRegion(), saveDataInCritRegionNoWait(), t1(), t1(), t1Code(), t2(), t2(), t2Code(), task(), task1(), task1Body(), task2(), task2Body(), task3(), taskBody(), tperiodic(), wrEnter(), and wrLeave().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_wait2()

int k_wait2	(	struct k_t *	sem,
		int	timeout,
		int *	nrClip )

wait with add info .´- nr of in max limit from signals since last time(saturation)

Wait on a semaphore. Task shift will task place if you are blocked.

Parameters

[in]	sem	semaphore handle
[in]	timeout	"<0" you will be started after timeout ticks, "=0" wait forever "-1" you will not wait
[out]	nrClip	If not NULL you will get in return nr of clip on signals on sem and clip counter will be set to 0

Returns: 1: ok there was a signal hanging - so no suspension; 0: ok- you have been suspended; -1: timeout has occured, -2 no wait bq timeout was -1 and semaphore was negative

Remarks: only to be called after start of KRNL

Definition at line 691 of file krnl.c.

References DI, EI, ki_wait(), and sem.

Referenced by task1().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k_wdt_disable()

void k_wdt_disable ( void )

disable HW watchdog disable wdt Disable the watchdog timer

Definition at line 1376 of file krnl.c.

References DI, EI, and k_wdt_enabled.

◆ k_wdt_enable()

void k_wdt_enable ( int t )

enable HW watchdog Call wdt_enable (AVR lib) DI(); wdt_enable(WDT_PERIOD); EI(); WDT_PERIOD is in KRNL i sec

Parameters

[t]	watchdog timout WDT_PERIOD is 1 sec See avrlib docu for more info The watchdog is reset in krnls timer ISR when active

Definition at line 1369 of file krnl.c.

References DI, EI, i, and k_wdt_enabled.

◆ ki_clear_msg_Q()

int ki_clear_msg_Q ( struct k_msg_t * pB )

Empty sendQ

Returns: given no of deleted messages; -1 if its no a msg q; -2 if krnl is not running; 0 or positive gives no of messages deleted

Definition at line 882 of file krnl.c.

References k_msg_t::cnt, k_t::cnt1, k_running, k_msg_t::lost_msg, k_msg_t::r, k_msg_t::sem, and k_msg_t::w.

Referenced by k_clear_msg_Q().

Here is the caller graph for this function:

◆ ki_millis()

unsigned long ki_millis ( void )

returns no msec since start - no DI/EI lock Returns nr of milliseconds since krnl was started by k_start

Returns: : unsigned long is returned

Remarks: only to be called after start of KRNL and only when interrupt is disabled; To be called within an ISR so interrupts is no disabled

Definition at line 1240 of file krnl.c.

References DI, k_millis_counter, and l.

Referenced by if(), myISR_Debounce(), myISR_No_Debounce(), and wr().

Here is the caller graph for this function:

◆ ki_msg_count()

int ki_msg_count ( struct k_msg_t * msgbuffer )

returns no of pending msg on msgf sem - a ki_ fct so no enable of interrupt

Parameters

[in] msgbuffer handle

Returns: no of pending messages or -1

Definition at line 828 of file krnl.c.

References DI, and m.

Referenced by k_msg_count().

Here is the caller graph for this function:

◆ ki_my_unused_stak()

int ki_my_unused_stak ( )

Returns amount of unused stak for running task

Returns: : amount of unused stak(in bytes)

Remarks: : a watermark philosophy is used; can be called from ISR . iif userapce you must disable intr

Definition at line 455 of file krnl.c.

References i, pRun, and STAK_HASH.

◆ ki_receive()

char ki_receive	(	struct k_msg_t *	pB,
		void *	el,
		int *	lost_msg )

Receive data (one element of el_size)in the ringbuffer if there are data DONE BY COPY ! No blocking if no data Interrupt will not be enabled after ki_receive and intr must be blocked prior to call

Parameters

[in]	pB	Ref to message buffer
[out]	el	Reference to where data shall be copied to at your site
[out]	lost_msg	nr of lost messages since last receive. will clip at If lost_msg ptr is NULL then overrun counter is not reset to 0

Returns: 1: data was rdy no suspension, 0: ok you have been suspended , -1: no data in ringbuffer

Remarks: can be used from ISR; only to be called after start of KRNL

Definition at line 959 of file krnl.c.

References k_msg_t::cnt, DI, k_msg_t::el_size, i, ki_wait(), k_msg_t::lost_msg, k_msg_t::nr_el, k_msg_t::pBuf, k_msg_t::r, and k_msg_t::sem.

Here is the call graph for this function:

◆ ki_semval()

int ki_semval ( struct k_t * sem )

return sem counter value - Its a ki_ fct so intr is not enabled by leave

returns value of semaphore

Parameters

[in] sem semaphore handle

Returns: 1: ok not suspended, 0: ok you have been suspended; -1 no wait maybe bq no timeout was allowed

Remarks: only to be called after start of KRNL; do not enable interrupt upon leaving

Definition at line 801 of file krnl.c.

References DI, and sem.

Referenced by k_semval(), and rdEnter().

Here is the caller graph for this function:

◆ ki_send()

char ki_send	(	struct k_msg_t *	pB,
		void *	el )

Put data (one element of el_size)in the ringbuffer if there are room for it. Intended for ISR use DONE BY COPY !

Parameters

[in]	pB	Ref to message buffer
[in]	el	Reference to data to be put in buffer. Size if already given in k_crt_send

Returns: 0: operation did succed, -1: no room in ringbuffer

Remarks: Interrupt will not enabled upon leaving, so ki_send is intended to be used from an ISR; only to be called before start of KRNL

Definition at line 908 of file krnl.c.

References k_msg_t::cnt, k_msg_t::el_size, i, k_send_Q_clip(), ki_signal(), k_msg_t::lost_msg, MAX_SEM_VAL, k_msg_t::nr, k_msg_t::nr_el, k_msg_t::pBuf, k_msg_t::sem, and k_msg_t::w.

Referenced by ISR(), ISR(), k_send(), myISR_Debounce(), and myISR_No_Debounce().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ki_signal()

int ki_signal ( struct k_t * sem )

signal a semaphore from AN ISR - no task shift , do not enable intr,...

Signal a semaphore. Can be called from an ISR when interrupt is disabled. No task shift will occur - only queue manipulation.

Parameters

[in] sem semaphore handle

Returns: 0: ok , -1: max value of semaphore reached

Remarks: only to be called after start of KRNL

Definition at line 605 of file krnl.c.

References deQ(), DI, k_sem_clip(), k_sem_signal(), MAX_SEM_VAL, pAQ, prio_enQ(), and sem.

Referenced by for(), if(), ISR(), k_mut_ceil_leave(), k_signal(), ki_send(), myISR(), myISR_Debounce(), myISR_No_Debounce(), and xxx().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ki_task_shift()

void ki_task_shift ( void )

shift running to task in front in AQ

HERE

Definition at line 302 of file krnl.c.

References K_CHG_STAK, PUSHREGS(), and RETI.

Referenced by k_mut_ceil_enter(), k_mut_ceil_leave(), k_release(), k_round_robbin(), k_send(), k_set_prio(), k_signal(), k_start(), and ki_wait().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ki_unused_stak()

int ki_unused_stak ( struct k_t * t )

Returns amount of unused stak

Parameters

[in] t Ptr to taskdescriptor. If NULL it is yourself

Returns: : amount of unused stak(in bytes)

Remarks: : a watermark philosophy is used; can be called from ISR . iif userapce you must disable intr

Definition at line 472 of file krnl.c.

References k_t::cnt1, i, pRun, and STAK_HASH.

Referenced by k_unused_stak().

Here is the caller graph for this function:

◆ ki_wait()

int ki_wait	(	struct k_t *	sem,
		int	timeout )

a wait call with no disable - fct might no be usefull

Like k_wait with the exception interrupt is NOT enabled when leaving

Parameters

[in]	sem	semaphore handle
[in]	timeout	"<0" you will be started after timeout ticks, "=0" wait forever "-1" you will not wait

Returns: 0: ok , -1: could do wait bw blocking would have taken place

Remarks: The ki_ indicates that interrups is NOT enabled when leaving ki_wait; only to be called after start of KRNL; normally not to be used by users !!! BEWARE

Definition at line 653 of file krnl.c.

References deQ(), DI, enQ(), ki_task_shift(), pRun, and sem.

Referenced by k_mut_ceil_enter(), k_receive(), k_wait(), k_wait2(), and ki_receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ prio_enQ()

void prio_enQ	(	struct k_t *	Q,
		struct k_t *	el )

Definition at line 217 of file krnl.c.

References k_t::next, k_t::pred, and k_t::prio.

Referenced by if(), k_crt_task(), k_init(), k_mut_ceil_enter(), k_mut_ceil_leave(), k_round_robbin(), k_set_prio(), and ki_signal().

Here is the caller graph for this function:

◆ volatile()

__asm__ volatile ( "reti" )

Variable Documentation

◆ pad0

exitt __pad0__

Definition at line 1330 of file krnl.c.

◆ AQ

struct k_t AQ

Definition at line 145 of file krnl.c.

Referenced by k_init().

◆ ERROR1

ERROR1

Initial value:

{

PUSHREGS()

PUSHREGS

PUSHREGS()

Definition at line 1268 of file krnl.c.

◆ k_coopFlag

unsigned char k_coopFlag = 0

Definition at line 166 of file krnl.c.

Referenced by if(), and k_set_coop_multitask().

◆ k_err_cnt

volatile char k_err_cnt = 0

Definition at line 156 of file krnl.c.

Referenced by k_crt_mut(), k_crt_sem(), k_crt_send_Q(), k_crt_task(), k_init(), and k_start().

◆ k_millis_counter

k_millis_counter = 0

Definition at line 161 of file krnl.c.

Referenced by if(), k_breakout(), k_millis(), ki_millis(), and wr().

◆ k_msg

int k_msg

Definition at line 153 of file krnl.c.

Referenced by k_crt_send_Q(), and k_init().

◆ k_running

volatile char k_running = 0

Definition at line 156 of file krnl.c.

Referenced by if(), ISR(), ISR(), k_crt_mut(), k_crt_sem(), k_crt_send_Q(), k_crt_task(), k_init(), k_mut_ceil_set(), k_set_prio(), k_start(), k_stop(), ki_clear_msg_Q(), PUSHREGS(), and xxx().

◆ k_sem

int k_sem

Definition at line 153 of file krnl.c.

Referenced by k_crt_sem(), k_crt_send_Q(), and k_init().

◆ k_task

int k_task

Definition at line 153 of file krnl.c.

Referenced by k_crt_task(), and k_init().

◆ k_tick_size

unsigned int k_tick_size

Definition at line 162 of file krnl.c.

Referenced by k_start(), and k_ticksize().

◆ nr_sem

char nr_sem = 0

Definition at line 154 of file krnl.c.

Referenced by for(), k_crt_sem(), and k_crt_send_Q().

◆ nr_send

char nr_send = 0

Definition at line 154 of file krnl.c.

Referenced by k_crt_send_Q(), and k_init().

◆ nr_task

char nr_task = 0

Definition at line 154 of file krnl.c.

Referenced by k_crt_task(), and k_init().

◆ pAQ

struct k_t * pAQ

Definition at line 147 of file krnl.c.

Referenced by if(), k_crt_task(), k_init(), k_mut_ceil_enter(), k_mut_ceil_leave(), k_round_robbin(), k_set_prio(), and ki_signal().

◆ pE

pE = sem_pool

Definition at line 1260 of file krnl.c.

Referenced by for().

◆ pmain_el

struct k_t * pmain_el

Definition at line 146 of file krnl.c.

Referenced by k_init(), and k_start().

◆ pRun

struct k_t * pRun

Definition at line 148 of file krnl.c.

Referenced by bugBitReset(), bugBitSet(), if(), jumper(), k_breakout(), k_mut_ceil_enter(), k_mut_ceil_leave(), k_round_robbin(), k_set_prio(), k_start(), ki_my_unused_stak(), ki_unused_stak(), ki_wait(), t1(), t2(), task(), task2(), and tgeneric().

◆ pSleepSem

struct k_t * pSleepSem

Definition at line 149 of file krnl.c.

Referenced by k_init(), and k_sleep().

◆ sem_pool

struct k_t * sem_pool

Definition at line 144 of file krnl.c.

Referenced by k_crt_sem(), and k_init().

◆ send_pool

struct k_msg_t* send_pool

Definition at line 151 of file krnl.c.

Referenced by k_crt_send_Q(), and k_init().

◆ task_pool

struct k_t* task_pool

Definition at line 143 of file krnl.c.

Referenced by k_crt_task(), and k_init().

◆ tcntValue

volatile unsigned char tcntValue

Definition at line 158 of file krnl.c.

◆ tmr_indx

int tmr_indx

Definition at line 168 of file krnl.c.

Referenced by for().

Functions

Variables

Function Documentation

◆ delayMicroseconds()

◆ deQ()

◆ enQ()

◆ for()

◆ freeRam()

◆ if()

◆ jumper()

◆ k_breakout()

◆ k_clear_msg_Q()

◆ k_clear_sem()

◆ k_crt_mut()

◆ k_crt_sem()

◆ k_crt_send_Q()

◆ k_crt_task()

◆ k_eat_msec()

◆ k_free()

◆ k_init()

◆ k_malloc()

◆ k_millis()

◆ k_msg_count()

◆ k_mut_ceil()

◆ k_mut_ceil_enter()

◆ k_mut_ceil_leave()

◆ k_mut_ceil_set()

◆ k_receive()

◆ k_release()

◆ k_round_robbin()

◆ k_sem_clip()

◆ k_sem_signal()

◆ k_sem_signals_lost()

◆ k_sem_wait()

◆ k_semval()

◆ k_send()

◆ k_send_Q_clip()

◆ k_set_coop_multitask()

◆ k_set_prio()

◆ k_set_sem_timer()

◆ k_signal()

◆ k_sleep()

◆ k_start()

◆ k_stop()

◆ k_ticksize()

◆ k_tmrInfo()

◆ k_unused_stak()

◆ k_wait()

◆ k_wait2()

◆ k_wdt_disable()

◆ k_wdt_enable()

◆ ki_clear_msg_Q()

◆ ki_millis()

◆ ki_msg_count()

◆ ki_my_unused_stak()

◆ ki_receive()

◆ ki_semval()

◆ ki_send()

◆ ki_signal()

◆ ki_task_shift()

◆ ki_unused_stak()

◆ ki_wait()

◆ prio_enQ()

◆ volatile()

Variable Documentation

◆ __pad0__

◆ AQ

◆ ERROR1

◆ k_coopFlag

◆ k_err_cnt

◆ k_millis_counter

◆ k_msg

◆ k_running

◆ k_sem

◆ k_task

◆ k_tick_size

◆ nr_sem

◆ nr_send

◆ nr_task

◆ pAQ

◆ pad0
