ceil04.ino File Reference

#include <krnl.h>

Include dependency graph for ceil04.ino:

Go to the source code of this file.

Macros
#define	STK   150
#define	TASKPRIO   10
#define	CEIL

Functions
void	task1 ()
void	task2 ()
void	task3 ()
void	setup ()
void	loop ()
void	init_IO_for_debug ()
void	bugBitSet (int bitNr)
void	bugBitReset (int bitNr)
void	k_sem_clip (unsigned char nr, int i)
void	k_sem_noclip (unsigned char nr)
void	k_breakout ()

Variables
char	stak1 [150]
char	stak2 [150]
char	stak3 [150]
struct k_t *	pTask1
struct k_t *	pTask2
struct k_t *	pTask3
struct k_t *	sem1
struct k_t *	sem2
struct k_t *	sem3
struct k_t *	sem4
volatile unsigned char	reg = 0
unsigned char	led13

Macro Definition Documentation

CEIL

#define CEIL

Definition at line 21 of file ceil04.ino.

STK

#define STK   150

Definition at line 14 of file ceil04.ino.

TASKPRIO

#define TASKPRIO   10

Definition at line 16 of file ceil04.ino.

Function Documentation

bugBitReset()

void bugBitReset

(

int

bitNr

)

Definition at line 146 of file ceil04.ino.

References DI, EI, pRun, and reg.

Referenced by task1(), and task2().

Here is the caller graph for this function:

bugBitSet()

void bugBitSet

(

int

bitNr

)

Definition at line 129 of file ceil04.ino.

References DI, EI, pRun, and reg.

Referenced by task1(), and task2().

Here is the caller graph for this function:

init_IO_for_debug()

void init_IO_for_debug

(

)

Definition at line 110 of file ceil04.ino.

References i.

Referenced by setup().

Here is the caller graph for this function:

k_breakout()

void k_breakout

(

void

)

Definition at line 188 of file ceil04.ino.

References pRun, and reg.

k_sem_clip()

void k_sem_clip	(	unsigned char	nr,
		int	nrClip )

a function for overloading on usersite which is called when a semaphore is overflooding no occur - it's only reading out semaphore idendity Signal operations has not taken place ! 1: means first semahore allocated by user, 2 the next etc Interrupt is disabled when called and must not be enabled during.. so no print etc

Parameters

[in]	nr	id of semaphore 1,2,3,...
[in]	nrClip	number of times clip has occured (may be reset by call k_wait_lost)

Definition at line 170 of file ceil04.ino.

References i, led13, and k_t::nr.

k_sem_noclip()

void k_sem_noclip

(

unsigned char

nr

)

Definition at line 177 of file ceil04.ino.

References led13, and k_t::nr.

loop()

void loop

(

void

)

Definition at line 105 of file ceil04.ino.

setup()

void setup

(

)

Definition at line 82 of file ceil04.ino.

References init_IO_for_debug(), k_crt_sem(), k_crt_task(), k_init(), k_mut_ceil_set(), k_start(), pTask1, pTask2, pTask3, sem1, sem2, sem3, sem4, stak1, stak2, stak3, STK, task1(), task2(), and task3().

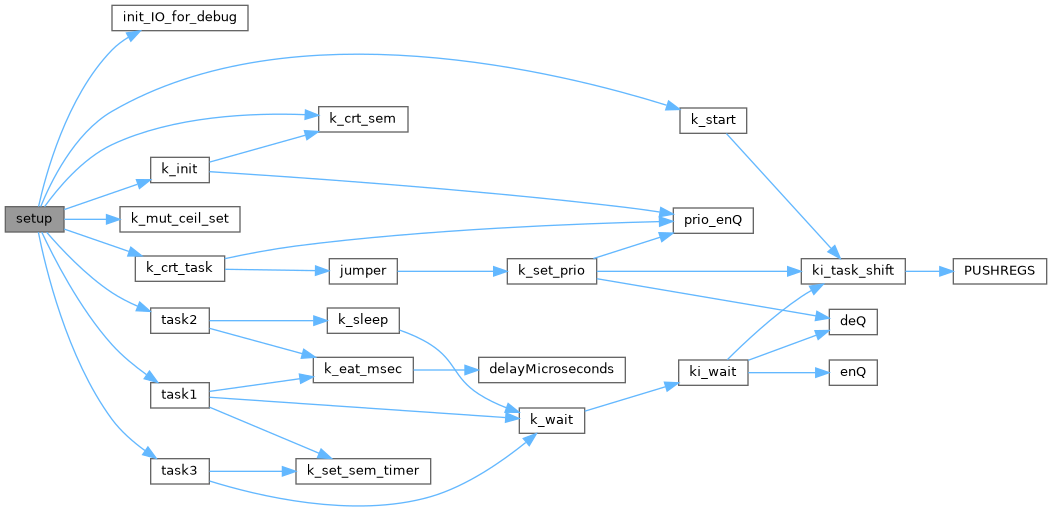

Here is the call graph for this function:

task1()

void task1

(

)

Definition at line 23 of file ceil04.ino.

References bugBitReset(), bugBitSet(), k_mut_ceil_enter(), k_mut_ceil_leave(), k_set_sem_timer(), k_signal(), k_wait(), sem1, and sem3.

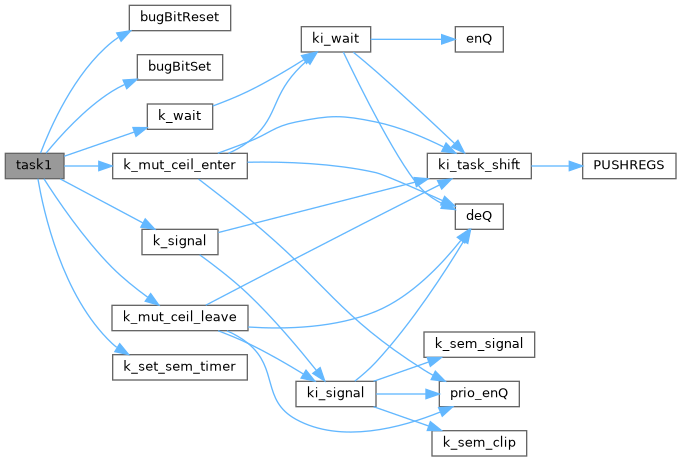

Here is the call graph for this function:

task2()

void task2

(

)

Definition at line 45 of file ceil04.ino.

References bugBitReset(), bugBitSet(), k_mut_ceil_enter(), k_mut_ceil_leave(), k_set_sem_timer(), k_signal(), k_wait(), sem1, and sem2.

Here is the call graph for this function:

task3()

void task3

(

)

Definition at line 73 of file ceil04.ino.

References k_set_sem_timer(), k_wait(), and sem4.

Referenced by setup().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

led13

unsigned char led13

Definition at line 168 of file ceil04.ino.

pTask1

struct k_t* pTask1

Definition at line 19 of file ceil04.ino.

pTask2

struct k_t * pTask2

Definition at line 19 of file ceil04.ino.

pTask3

struct k_t * pTask3

Definition at line 19 of file ceil04.ino.

Referenced by setup().

reg

volatile unsigned char reg = 0

Definition at line 127 of file ceil04.ino.

sem1

struct k_t * sem1

Definition at line 19 of file ceil04.ino.

sem2

struct k_t * sem2

Definition at line 19 of file ceil04.ino.

sem3

struct k_t * sem3

Definition at line 19 of file ceil04.ino.

sem4

struct k_t * sem4

Definition at line 19 of file ceil04.ino.

Referenced by setup(), and task3().

stak1

char stak1[150]

Definition at line 18 of file ceil04.ino.

stak2

char stak2[150]

Definition at line 18 of file ceil04.ino.

stak3

char stak3[150]

Definition at line 18 of file ceil04.ino.

Referenced by setup().
