Sick PBS PLUS sensors

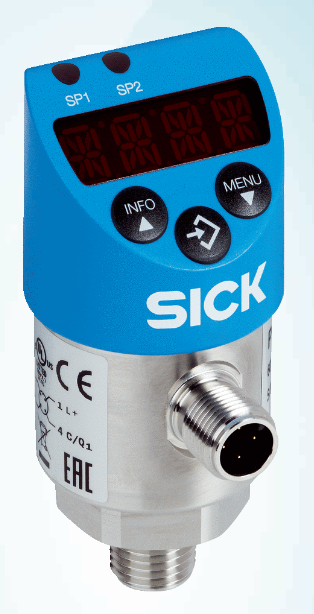

Sick PBS Plus sensors is a number of pressure and much more.
This page holds info about the pressure sensors
 |
Datasheets and documents
See datasheets and documents: links to docs at RS
Local copy:
Src folder list: here
How to configure by the builtin display and buttons.
See Manual-6 here english version starts at page 35
Pins on 4 and 5 pins connector
NB diff usage depending on type. Some versions do not have analog I or V output
You can check it in the product ID
 |
How to check for active analog output
You can measure current consumption for the sensor.
If its below 45 mA or then there is no analog output enabled (it might be possible there is an analgo output in the sensor but its maybe not enabled - see below and read product id)
If its above 100 mA it is active

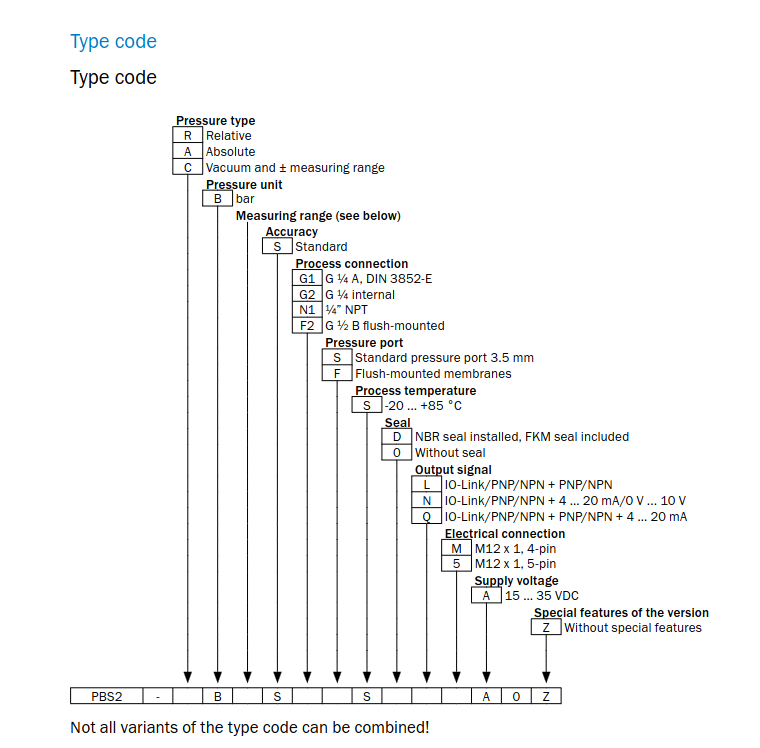

Product ID decoding:
 |

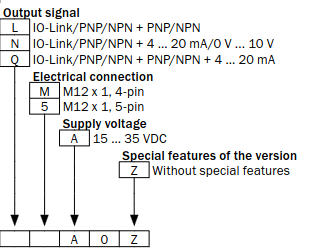

Last 5 in product ID
If field 5 from right is L then there is no analog output possible.
 |
In lab we do have
product id 6074015
